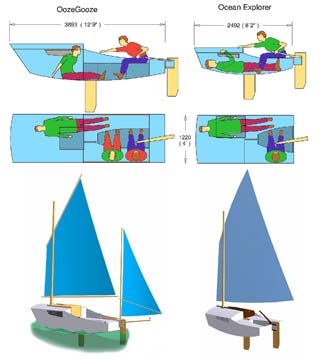

OozeGooze is Pdgoose version of Ocean Explorer. Compared to Ocean Explorer OozeGooze gives room for another sailor, or extra comfort to lonely skipper.
click the image above to enlarge
OozeGooze´s idea was to make a boat, that should be relative easy and fast to build. The box shape hull gives roomy cockpit and space for two to sleep inside cabin.
Plans contain 3 pdf files in a zipped folder. One for hull, one for sails, spars and foils and one rotatable 3d model. All the boat's parts are shown in this model so if something is unclear it can be checked from this model.

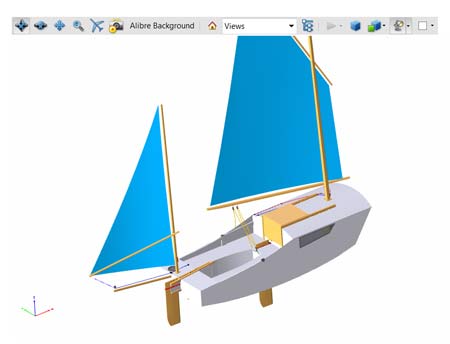

The Full 3d model looks like this

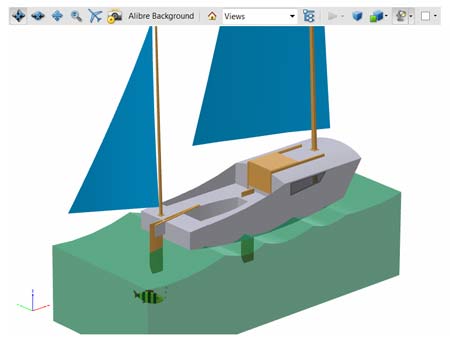

As a bonus, there is a rotatable 3d model which you can download below. This is a lite version
click the image above to download the rotatable lite model
3d models Instructions :
First activate the model by clicking it on left mouse button.
Full screen mode is recommended - right click model and select full screen mode
keep left mouse button pressed down and move mouse
keep right mouse button pressed down and move mouse,
or with roller mouse just use the roller wheel
keep left and right mouse buttons pressed down and move mouse
To hide parts in model, click part with left mouse button and select page properties
and hide – or transparent.
(The models work only in free Adobe Acrobat reader. 3D pdf files may not work with another pdf readers.)

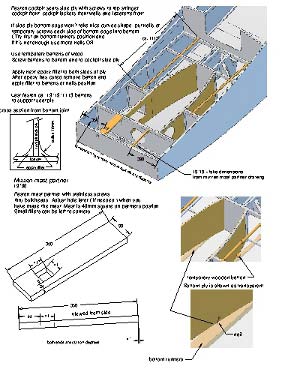

Plans are well detailed, see sample below:

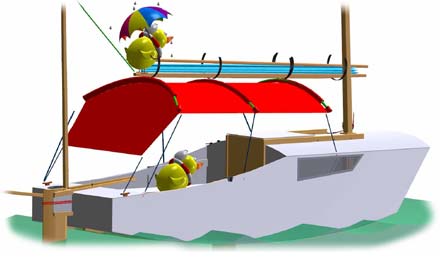

Now there are free plans for an Ooze Goose boom tent. To download this free PDF file with 7 pages of color drawings, instructions and dimensions, click HERE or on the image above.
