Katta 545 Plans

Katta 545 Plans



  Metric

This is an instant download.
Our Price: $95.00


Availability:: Available for download now
Qty:

Description Particulars

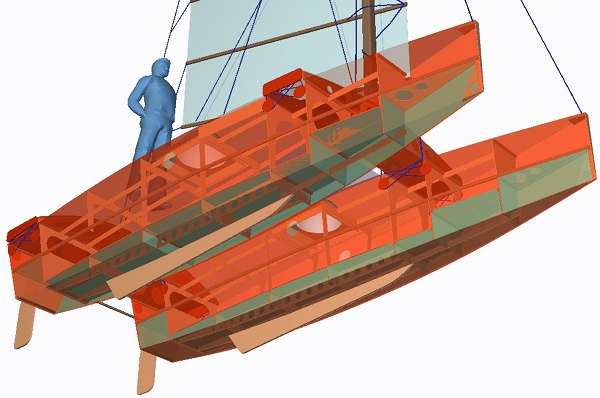

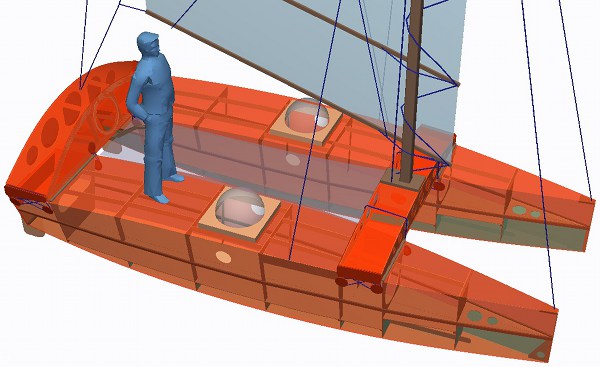

A pocket cruiser catamaran for two to four, with flat bottoms inspired by the genius Berque’s twin M5.

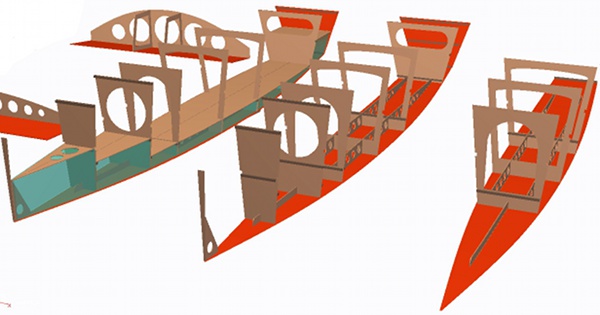

Stich and glue building on light frames and bulkheads. A large rear beam and a mast float should help in case of capsize. Each hull has a large sleeping place and sitting headroom.

26 sheets of 6mm - 1/4 ACX plywood.

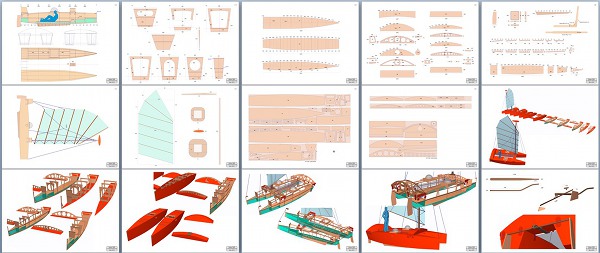

The plans detail all the parts and panels dimension, the parts nesting on plywood sheets, the junk rig and sail, and a complete building sequence in 3D.
